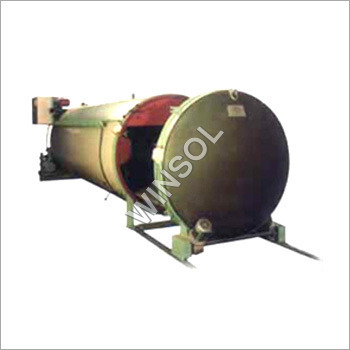

Vacuum Drying System

Vacuum Drying System
Vacuum Drying System
Product Code : 18
Product Description

We are an unparalleled name, engaged in offering a premium quality range of Vacuum Drying System. This system is mainly used in timber industry to dry moisture from the wood. Offered system is precisely manufactured keeping in mind latest market norms by utilizing supreme class component with the help of upgraded technology by our adept professionals. The offered drying system is available with us in several specific options for our prestigious clients. Well-known in the industry for its excellent performance and low power consumption, we offer this Vacuum Drying System at pocket-friendly rates to the clients.

Features:

  • Sturdy construction

  • Trouble free working

  • Less maintenance

  • Reduce manpower

The outer surface of the autoclave of these systems is insulated with glass wool & galvanized sheet and the internal surface is coated with H.R.C. epoxy paint.

These plants are fitted with following valves & controllers:

  • Horizontal cylindrical autoclave with one size quick open able dished end door

  • Reversible aluminum fans with elect. Motors

  • Heat exchanger pipes with pipe lines

  • Internal & external rail tracks with single line trolley

  • Pumping: steel structured pump station, vacuum pump with elect. motor, shell & tube type condenser, cooling tower with water pump & tank and vacuum tank

  • Monitoring instruments as in-kiln moisture meter with probe, vacuum gauge, and pressure gauge and temperature sensor with solenoid valve

  • Electrical fitting with switchboard with fuses & starters and Electrical wiring between the motors to the switchboard. Requirement of Electric supply of 415 Volts, 3 phase, 50 Hz, AC current

Advantages:

  • Vacuum Dryer is faster by 3 to 5 times than the conventional Kilns

  • For the same capacity the conventional Kiln need 4 to 5 times the space (land) for the same volume turn over per unit time.

  • The concrete chamber requires large space and thus is expensive

  • Being more efficient, vacuum dryers are more difficult to dry in conventional or other kilns like oak & beech.

  • In higher thickness timber the speed of drying compared between vacuum dryer and conventional kiln, the fact will be very high as high as 5 times or more

  • Vacuum dryer is most useful for drying for white colored species like maple, birch, beech and rubber, as the timber remains very light in color as there is no oxygen in the system during the drying process.

  • This prevents brownish oxidation from taking place during the drying, and the white timber species remains therefore very white in color with this system.

  • Steaming process can also be done on Beech wood for uniform color, if heated by steam.
